BALDOR  |  SKU: Vl1322T

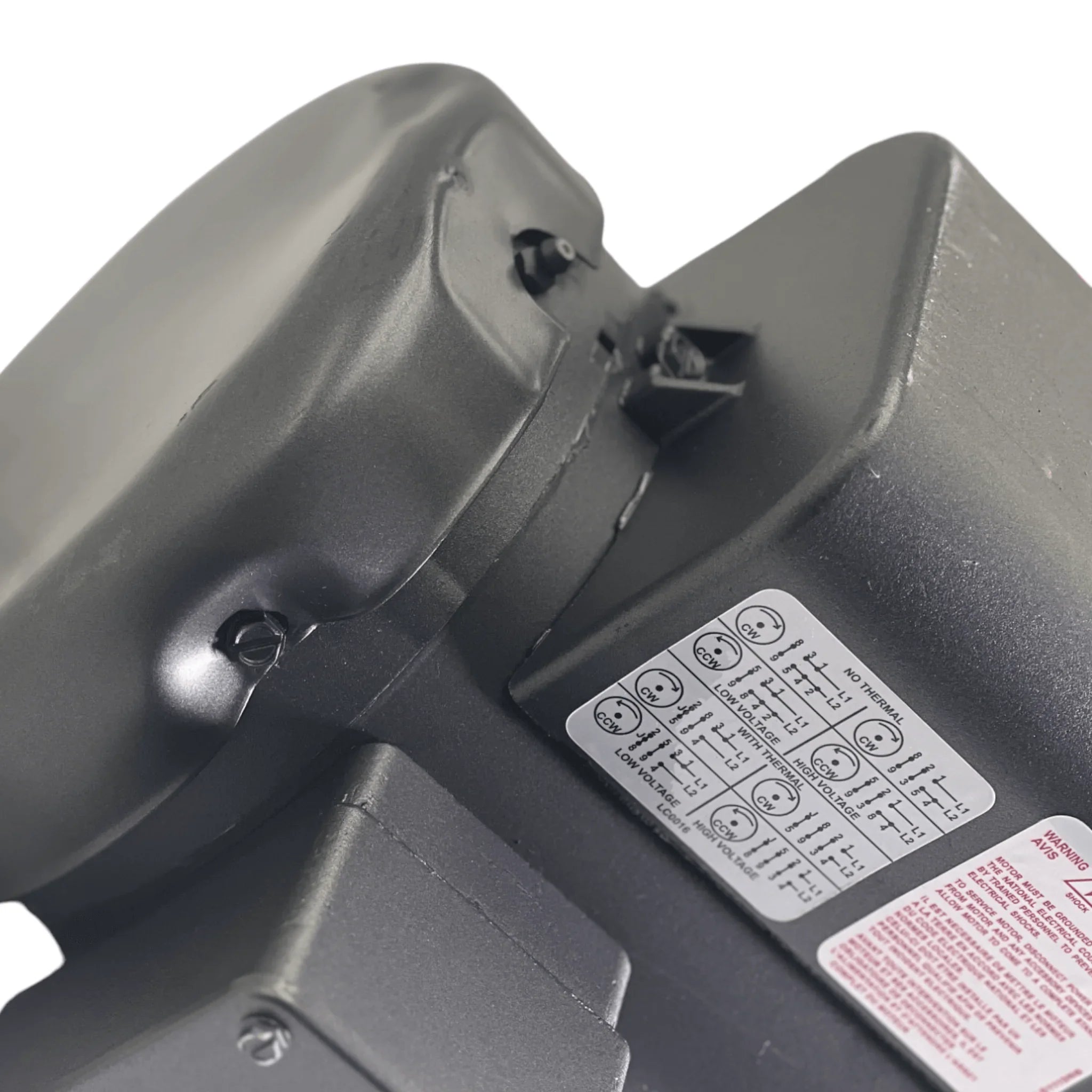

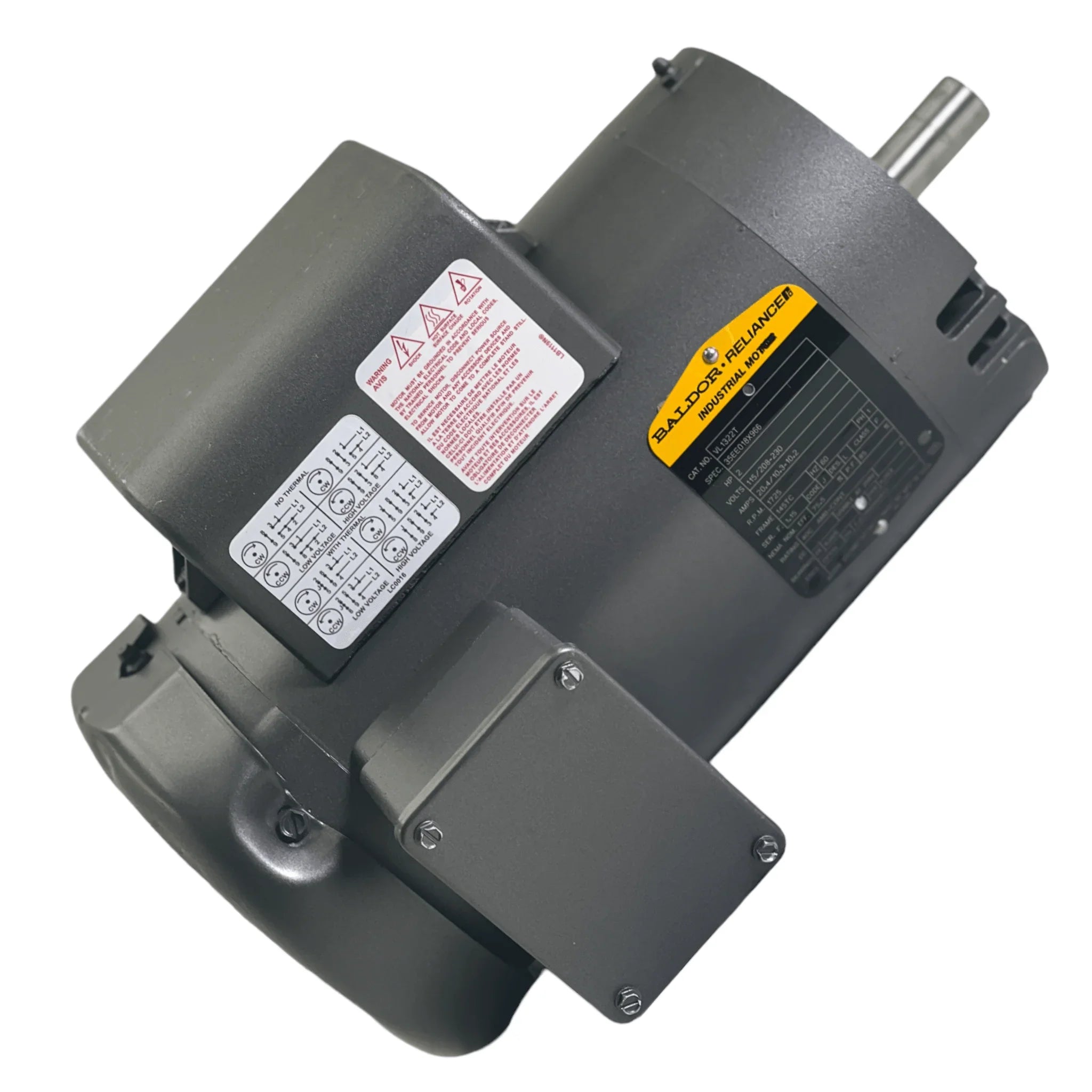

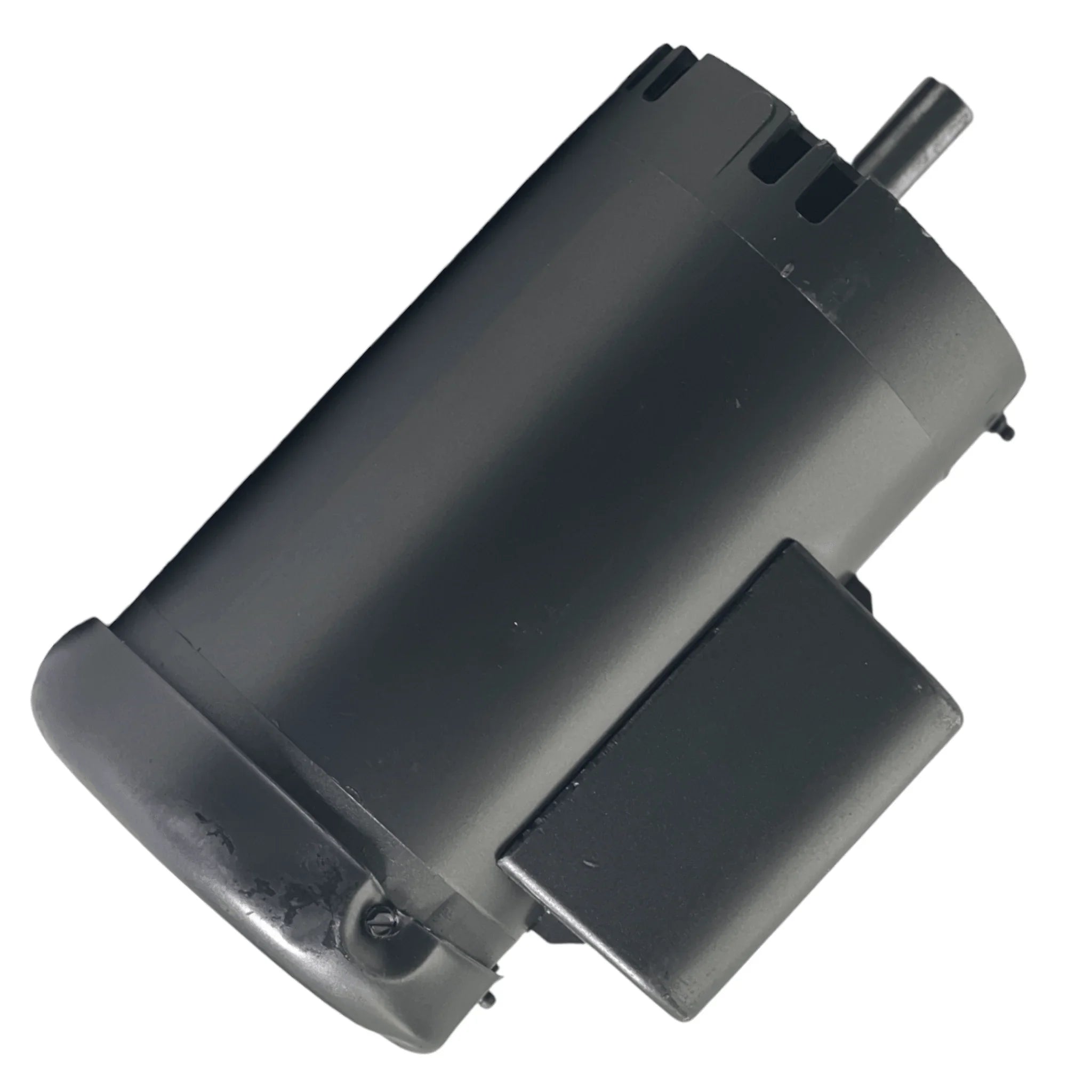

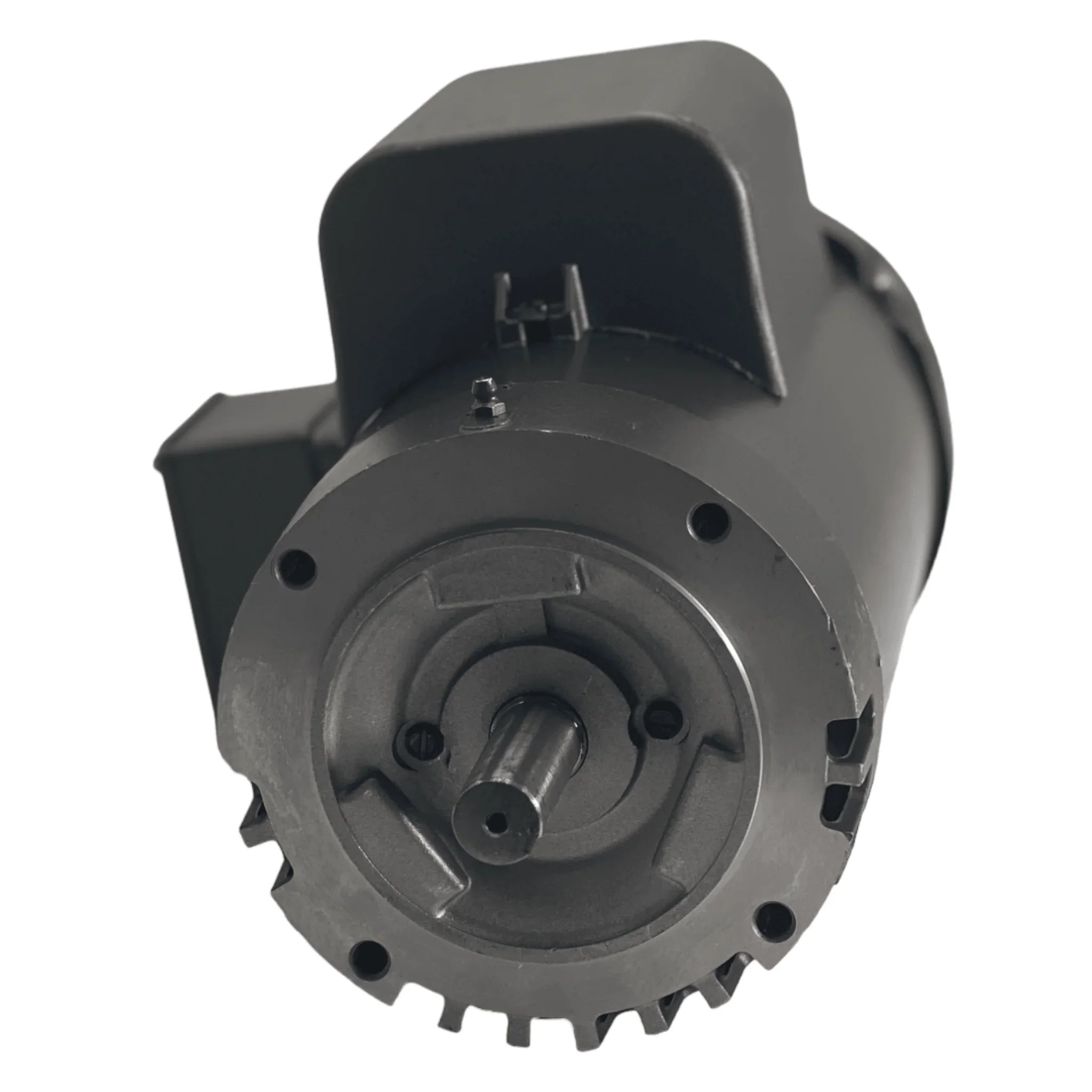

Vl1322T Baldor-Reliance Capacitor General Purpose Motor

Call us at: +1 (252) 220-8829
$999.00
Shipping calculated at checkout.

PRODUCT DESCRIPTION

Description: Capacitor General Purpose Motor

Condition: New

Brand: Baldor-Reliance

Part Number: Vl1322T

Other OEM Part Numbers That Will Work: 704230AT

Product Details:

  • Motor Application - General Application
  • Phase - Single
  • Motor Design - Capacitor-Start/Run
  • HP - 2
  • Nameplate RPM - 1,725
  • Voltage - 115/230V AC
  • No. of Speeds - 1
  • Frame - 145TC
  • Full Load Amps - 20.4/10.3-10.2
  • Usable @ 208V - Yes
  • Motor Service Factor - 1.15
  • Usable @ 200V - No
  • Max. Ambient Temp. - 40 °C
  • Hz - 60
  • Motor Thermal Protection - None
  • Duty Cycle - Continuous
  • Motor Enclosure Design - Open Dripproof
  • Ins. Class - B
  • Motor Shaft Rotation - CW/CCW
  • NEMA Design - L
  • Motor Mounting Type - Face
  • Shaft Dia. - 7/8 in
  • Motor Shaft Design - Keyed
  • Shaft Length - 2-1/4 in
  • Motor Frame Material - Steel
  • Motor Bearings - Ball
  • Length Less Shaft - 12 in
  • Weight - 48 lb
  • Overall Length - 14-3/16 in
  • CC Number - CC031A
  • Includes - Conduit Box
  • Standards - CSA; UR
  • Manufacturers Warranty Length - 2 yr
  • UNSPSC - 26101602
  • Country of Origin - USA (subject to change)
  • Nominal Efficiency - 75.5 %
