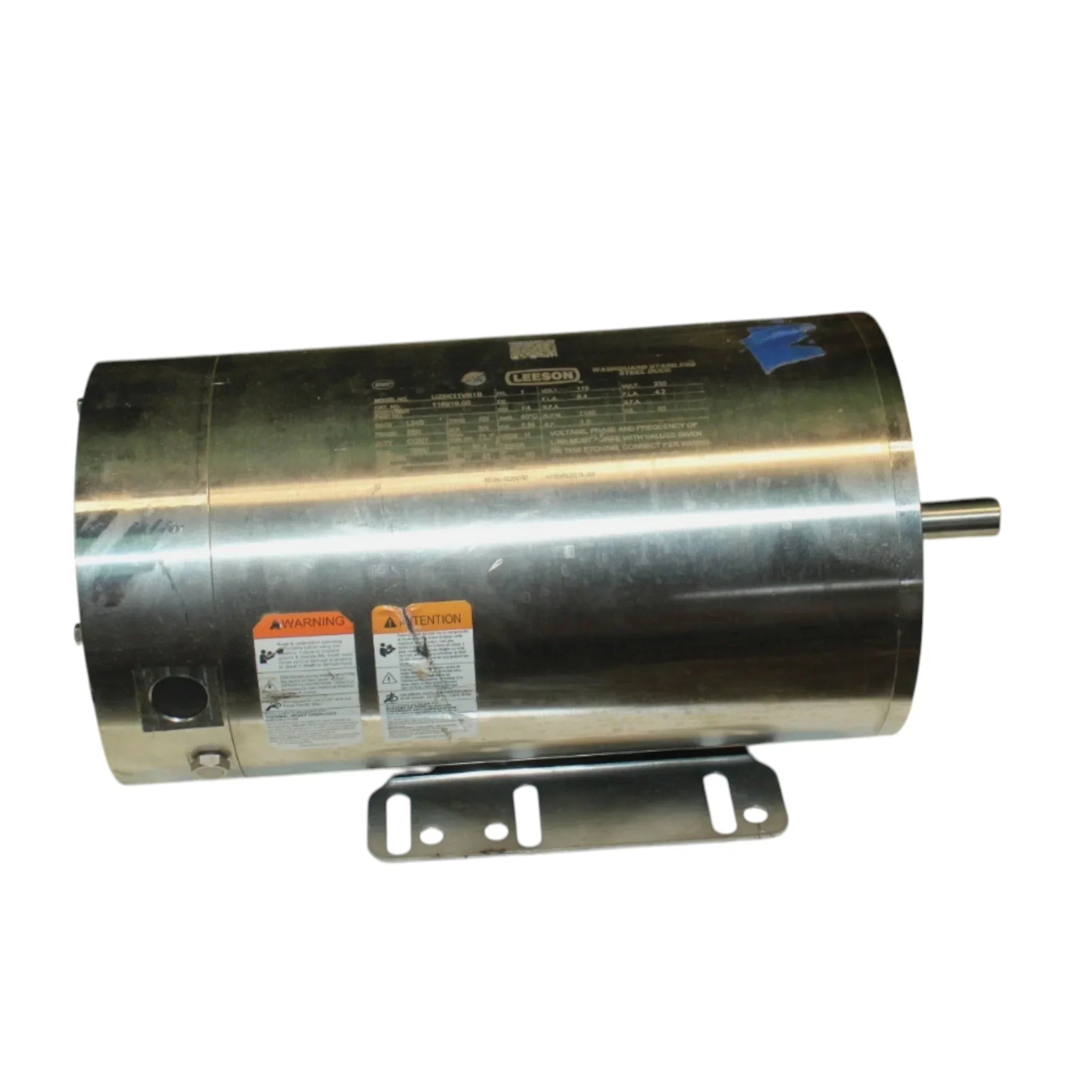

UZ6K11VB1B Leeson Motor

Description: Motor

Condition: New

Brand: Leeson

Part Number: UZ6K11VB1B

Other OEM Part Numbers That Will Work: 116919.00, 713498AT

Specifications:

• Motor Phase: 1 ph

• Motor Horsepower: 3/4 hp (0.75 HP)

• kW: 0.56 kW

• Voltage: 115/230 V

• Motor Supply Voltage: 115/208-230 V

• Volts @ Frequency: 115/208-230 V @ 60 Hz

• Frequency Rating: 60 Hz

• Synchronous RPM: 1200 rpm

• Base RPM: 1140 rpm

• Motor Poles: 6-pole

• Number Of Speeds: 1

• Electrical Type: Capacitor Start Capacitor Run

• Starting Method: Across The Line

• Full Load Efficiency: 71.70 %

• KVA Code: H

• NEMA Design Class: No Design Code

• Frame Size: 56H

• Frame Material: Stainless Steel

• Enclosure Type: TENV (Totally Enclosed Non-Ventilated)

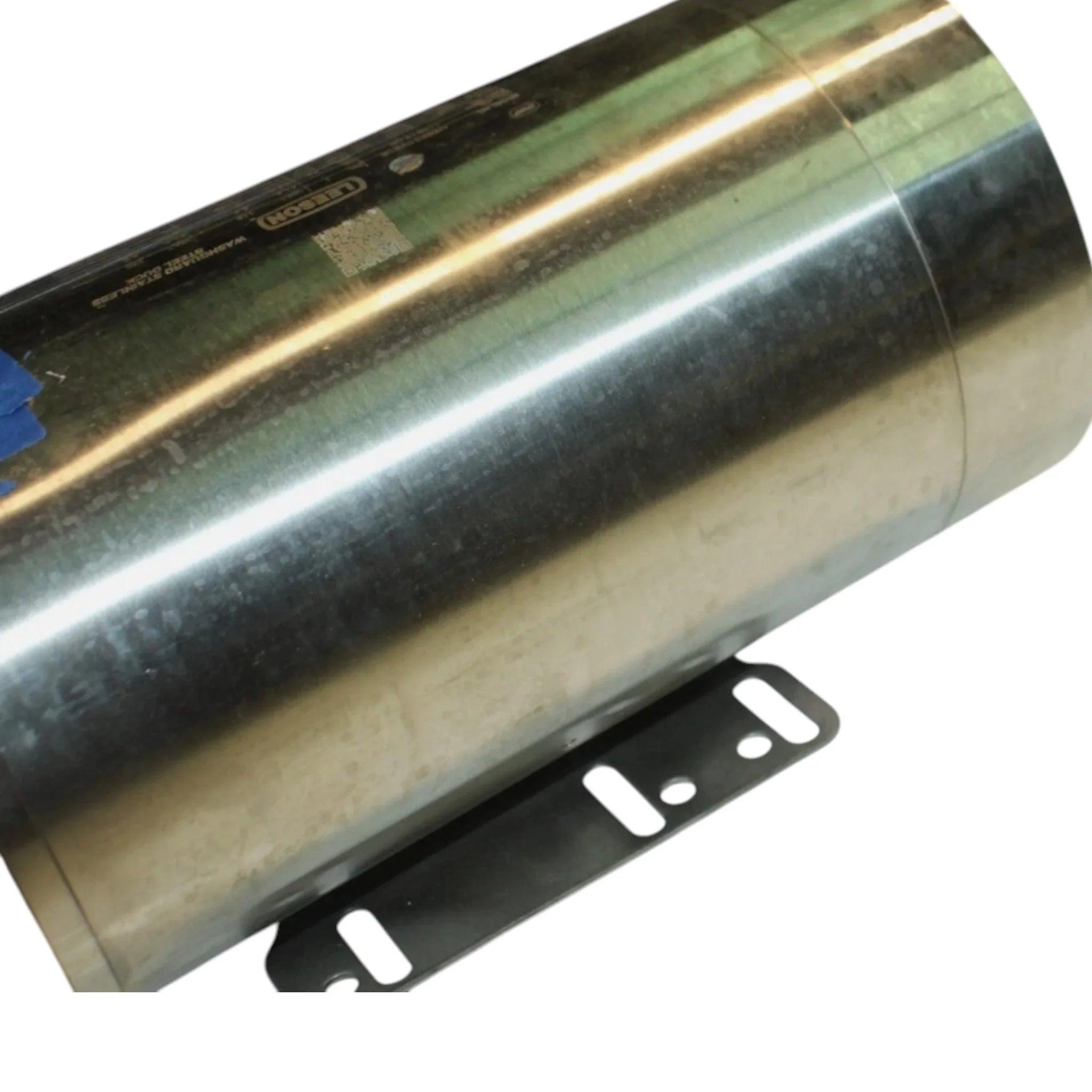

• Mounting Type: Rigid Base

• Assembly Box Mounting: F1 Only

• Motor Orientation: Horizontal

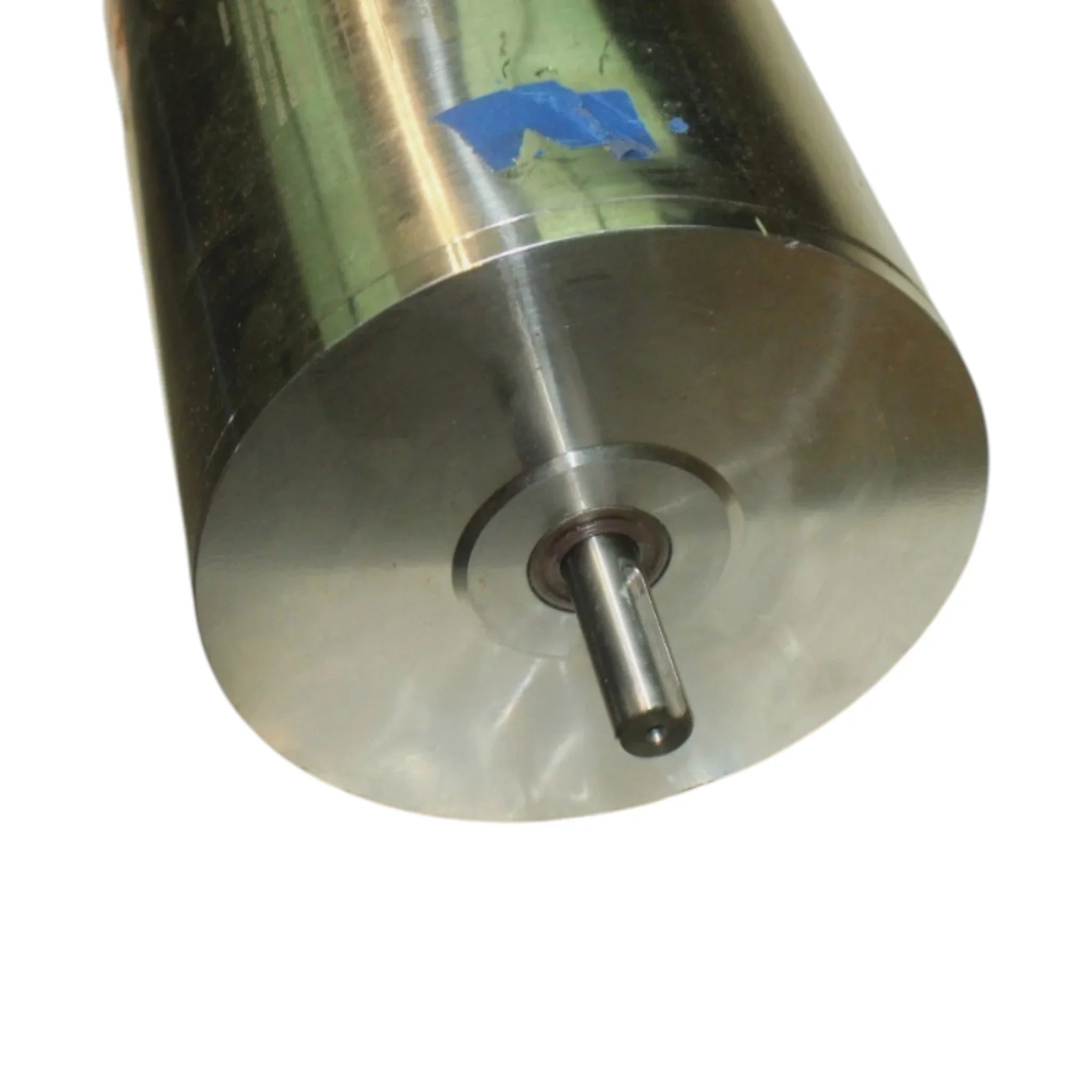

• Shaft Type: NEMA 56

• Shaft Diameter: 0.6250 in

• Shaft Rotation: Selective Counterclockwise

• Motor Length Less Shaft: 9.50 in

• Overall Length C Dimension: 13.88 in

• Weight: 56.00 lbs

• Duty Condition Type: Continuous Duty

• Thermal Protection: Automatic

• Overload Protector: Automatic

• Insulation Class: F

• IP Rating: 55

• Ambient Temperature Range: 40 °C

• Type Of Bearing: Ball Bearing

• Drive End Bearing Size: 6205

• Opposite Drive End Bearing Size: 6203

• Opposite Drive End Bearing Type: Ball

• Description: General Purpose Motor, 0.75 HP, 1 Ph, 60 Hz, 115/230 V, 1200 RPM, 56H Frame, TENV

• Description Keyword: 3/4 hp

• Motor Category: Premium Stainless Motor

• Product Type: General Purpose Motors

• Harmonization Code: 8501.40.4040

• Manufacturer UPC Number: 691720053096

• Manufacturer Product Page: Click here

• Wiring Diagram: Click here

• 2D Drawing: Click here
