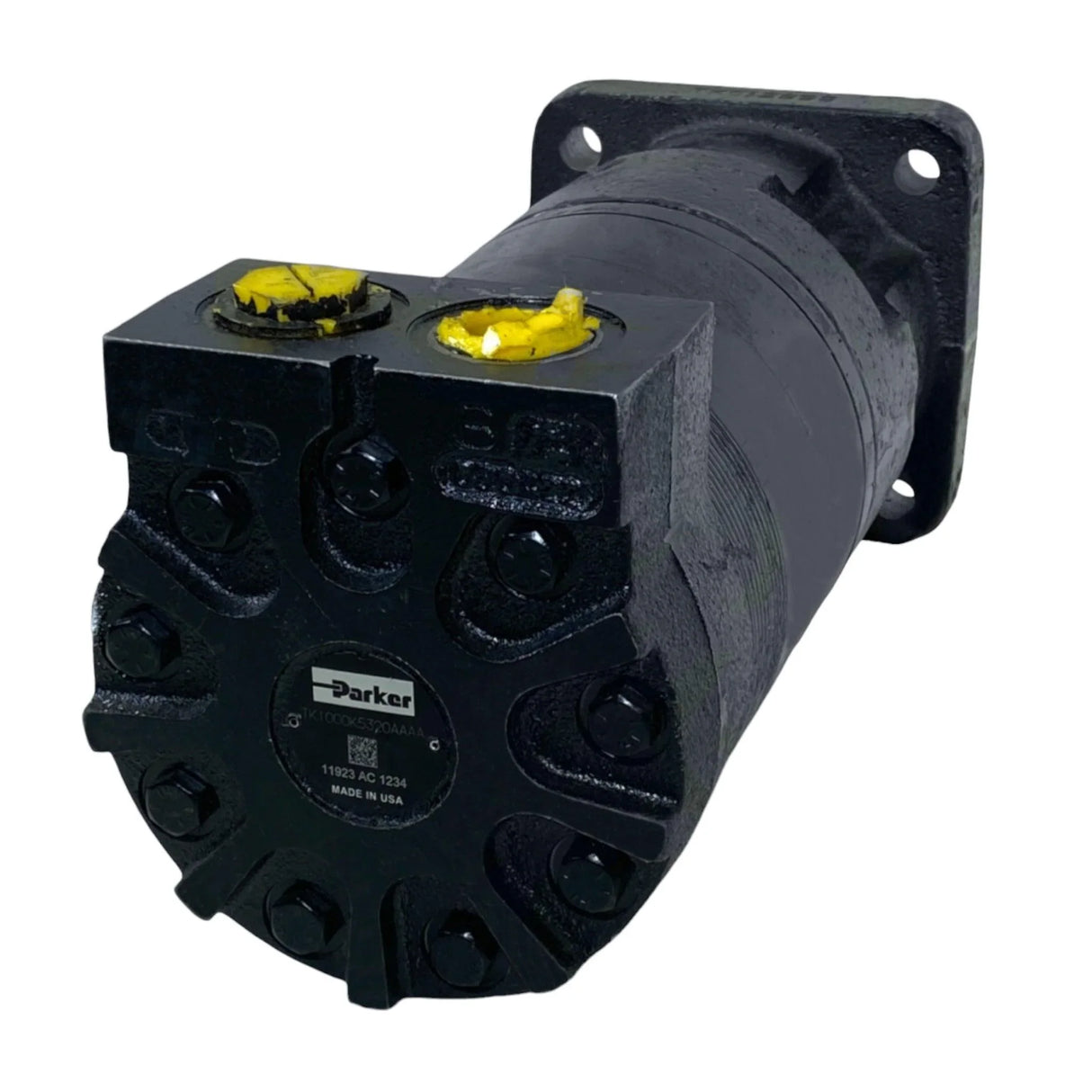

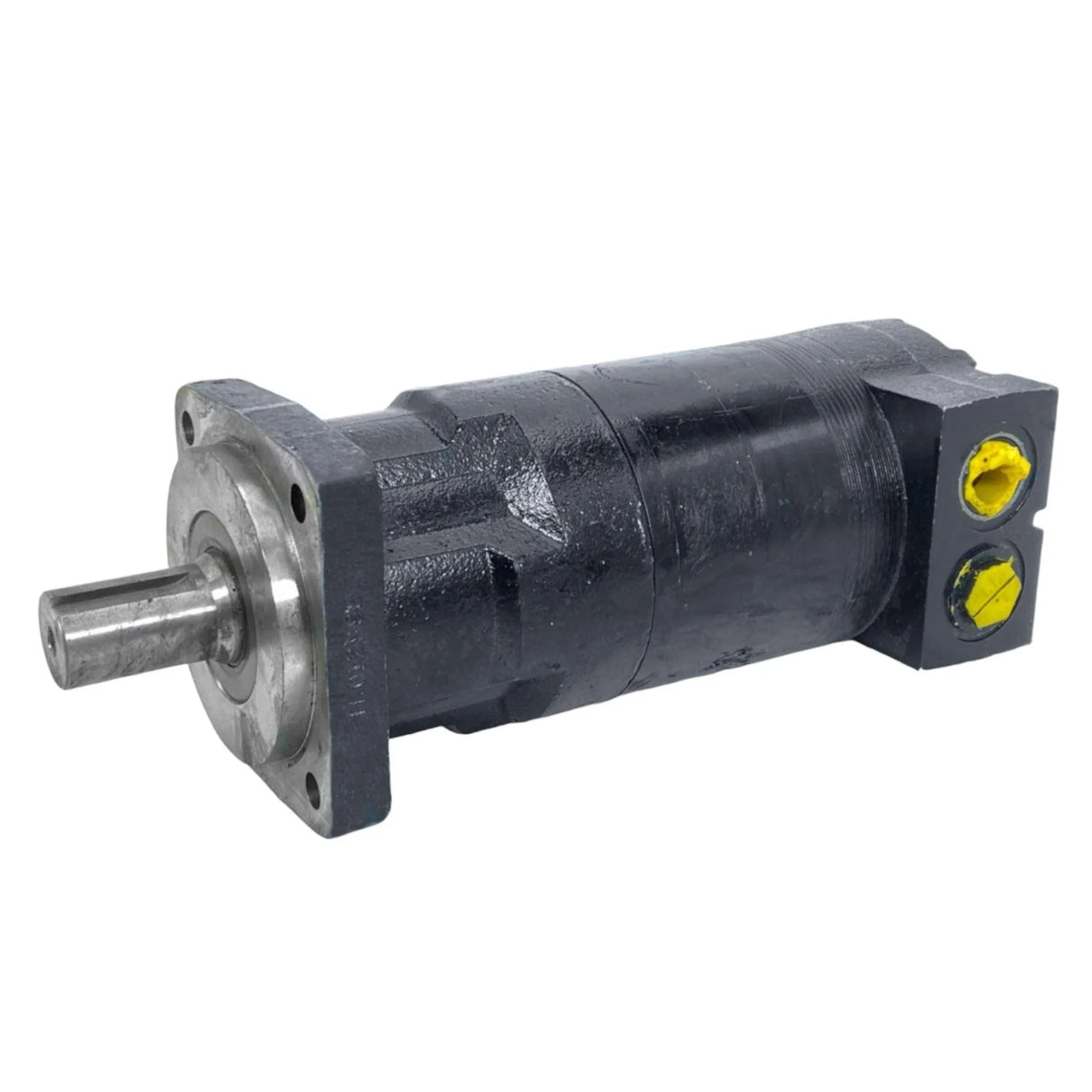

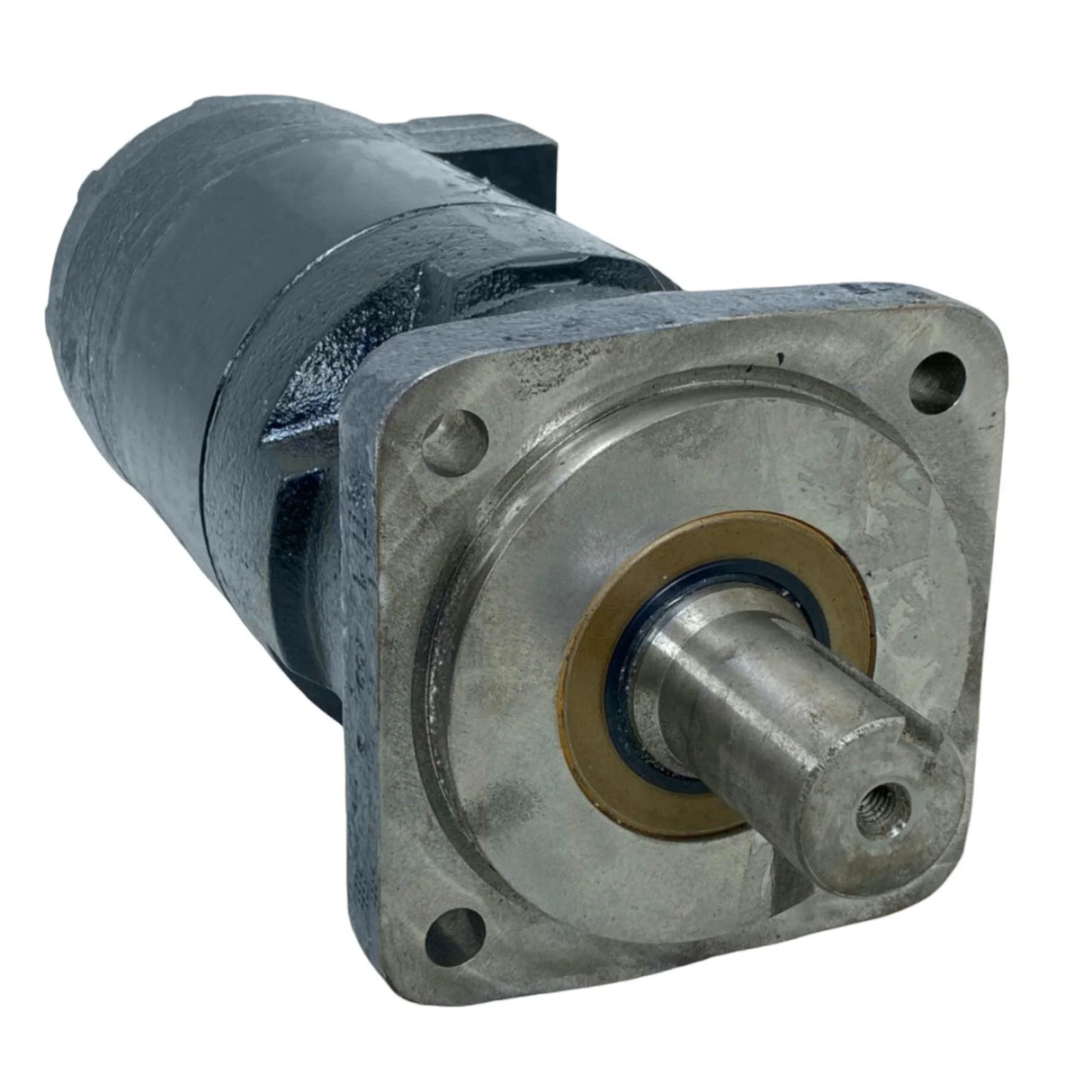

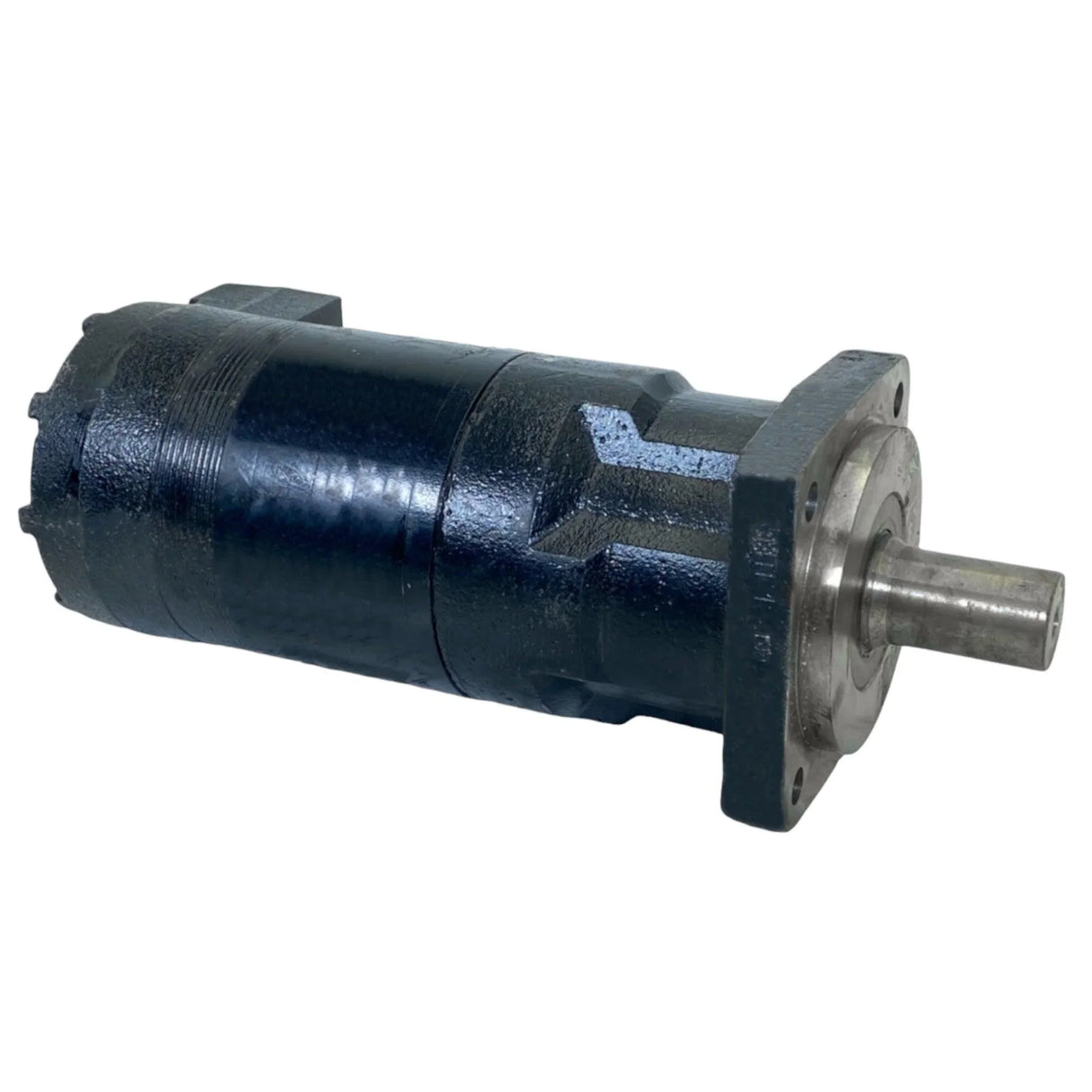

TK1000K5320AAAA Parker TK Series Low Speed High Torque Large Frame Torqmotor
Call us at: +1 (252) 220-8829
PRODUCT DESCRIPTION
Description: TK Series Low Speed High Torque Large Frame Torqmotor
Condition: New
Brand: Parker

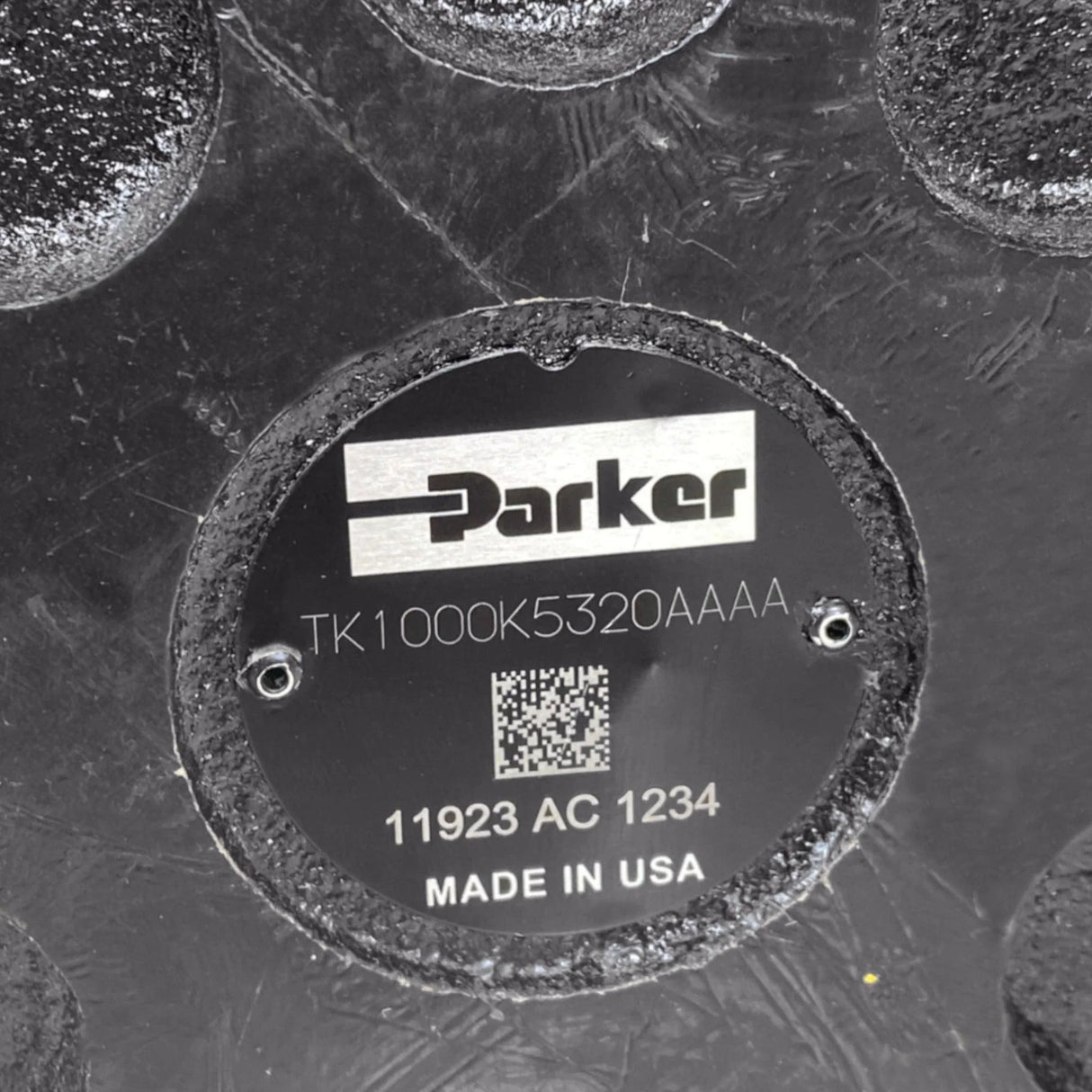

Part Number: TK1000K5320AAAA
Other OEM Part Numbers That Will Work: TK1000K5320AAAA, K1000-K-5-32-0-AAAA, 705992AT
Series: TK
Shaft: 1 1/2" Keyed
Rotation: Standard
Displacement (cm3/rev): 1000
Mounting: Standard SAE CC
Ports: 1 5/16-12 SAE Rear Radial
Geometric Displacement: 1000 cm3/rev (61.0 in3/rev)
Maximum Speed: 218 rev/min
Maximum Oil Flow (continuous / intermittent): 151 lpm (40 gpm) / 227 lpm (60 gpm)
Max. Differential Pressure (continuous / intermittent): 172 bar (2500 PSID) / 190 bar (2750 PSID)
Maximum Supply Pressure: 328 bar (4750 PSID)
Maximum Torque - Continuous / Intermittent: 2413 Nm (21360 lb in) / 2660 Nm (23540 lb in)
Maximum Performance: 35.4 KW (47.5 HP)
Minimum Starting Torque - Continuous / Intermittent: 1981 Nm (17535 lb in) / 2180 Nm (19290 lb in)
Maximum Side Load at Key: 26245 N (5900 lb)
Shaft Code: 32
Rotation Code: 0
Options code: AAAA
Option: Black Paint
Mounting code: K
Ports code: 5
