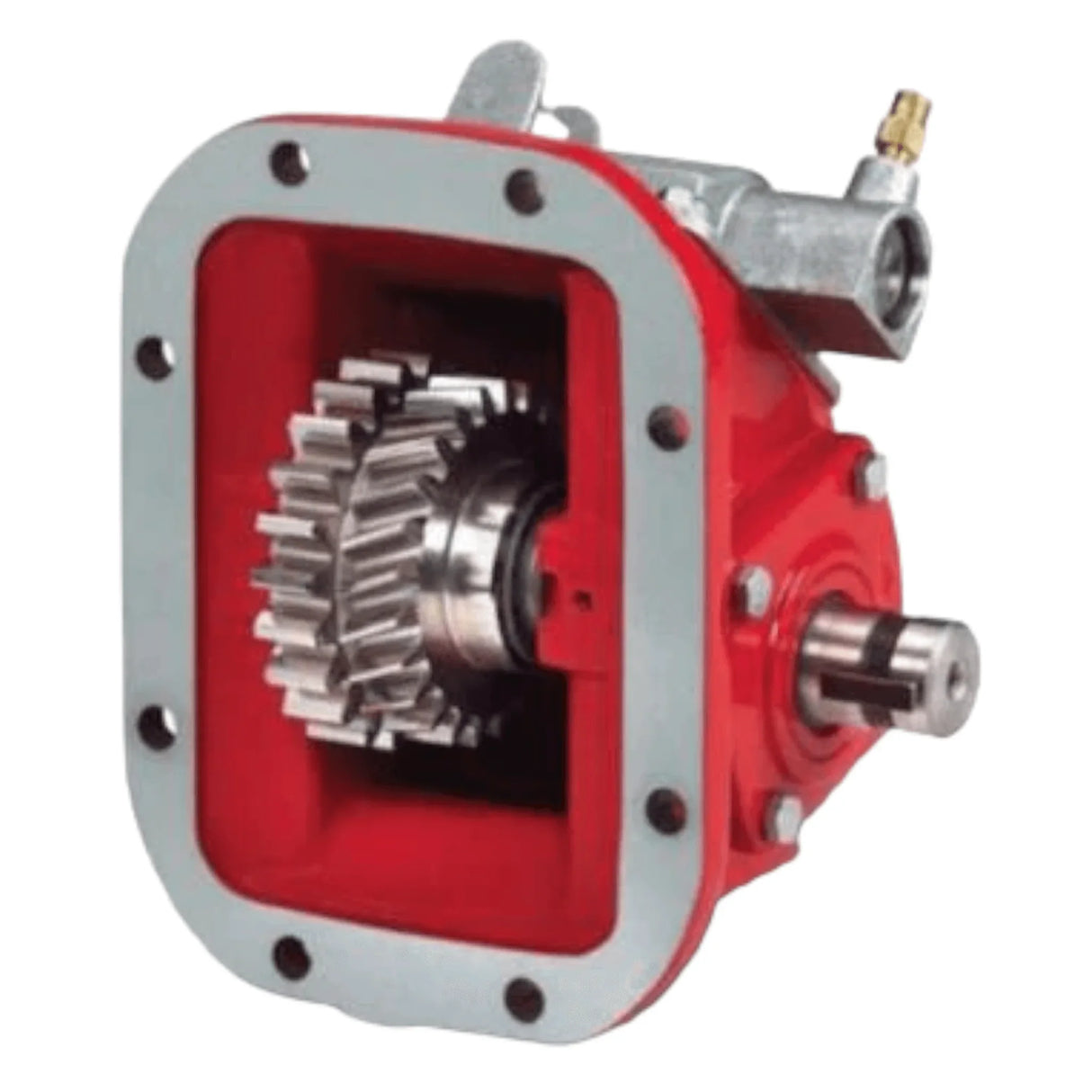

680Gqahx-V3Gk | Chelsea® 680 Series Mechanical Shift 8 Bolt Power Take Off
680Gqahx-V3Gk | Chelsea® 680 Series Mechanical Shift 8 Bolt Power Take Off

680Gqahx-V3Gk | Chelsea® 680 Series Mechanical Shift 8 Bolt Power Take Off

$1,549.00
  • We ship same business day!
  • 1 Year warranty on all parts
  • 30 Day returns on all parts
  • Free returns & cancellations.
Description: 680 Series Mechanical Shift 8 Bolt Power Take Off

Condition: New

Brand: Chelsea

Part Number: 680GQAHX-V3GK

Other OEM Part Numbers That Will Work: 680GQAHXV3GK

Product Features:

Excellent coverage for transmissions with 8-Bolt openings
Deep mount housing option for Mack applications
Designed for higher torque applications such as pneumatic blowers
Two Year Warranty
Markets:

Aerial
Snow and Ice Removal
Fire and Rescue
Dump Truck and Trailer
Service Trucks
Refuse
Performance Characteristics:

Mounting Style: 8-Bolt
Shift Type: Mechanical
Standard Output Shaft Size: 1-1/4" Round with Key
Intermittent Torque Rating (Lbs-ft): 375
Intermittent Torque Rating (Nm): 508
Hosepower Rating for Intermittent Service
At 500 R.P.M. of Output Shaft (HP): 36
At 500 R.P.M. of Output Shaft (Kw): 27
At 1000 R.P.M. of Output Shaft (HP): 71
At 1000 R.P.M. of Output Shaft (Kw): 53
Approximate Weight: 28.2 lbs. [12.8Kg]
* Check Application Pages for Actual Torque Ratings
Specifications:
Mounting Type: Standard Mount (with Metric Studs)
Gear Ratio: 0.865:1
Input Gear: 22-Teeth Spur Gear, 19-Teeth Ratio Gear, 24-Teeth Output Gear
Lubrication: without Pressure Lube
Shifter Type: Air Shift (without Installation Kit)
Assembly Arrangement: 3
Output Type: Greasable, SAE "B" 2- or 4-Bolt
