DANA SPICER  |  SKU: 6-4-7771

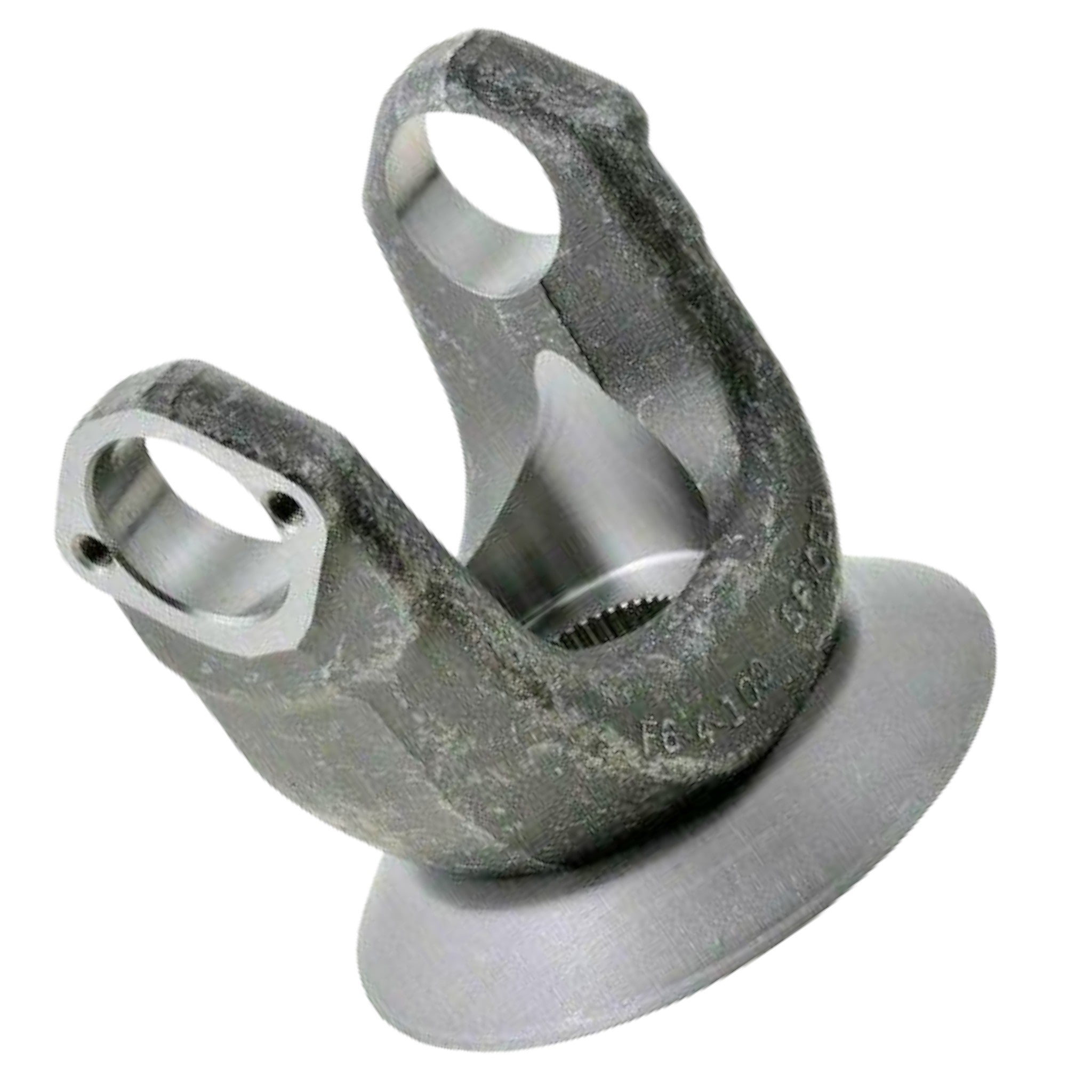

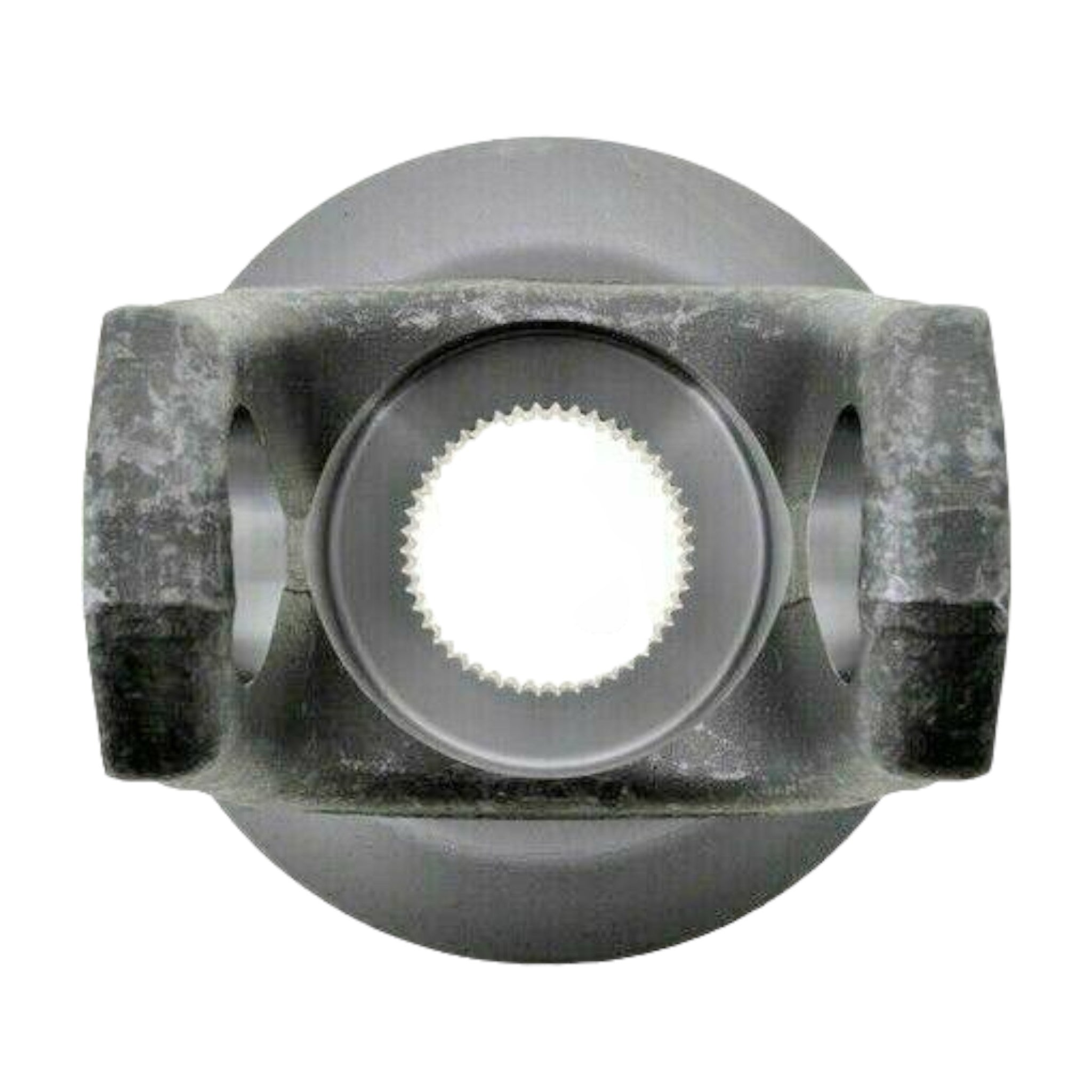

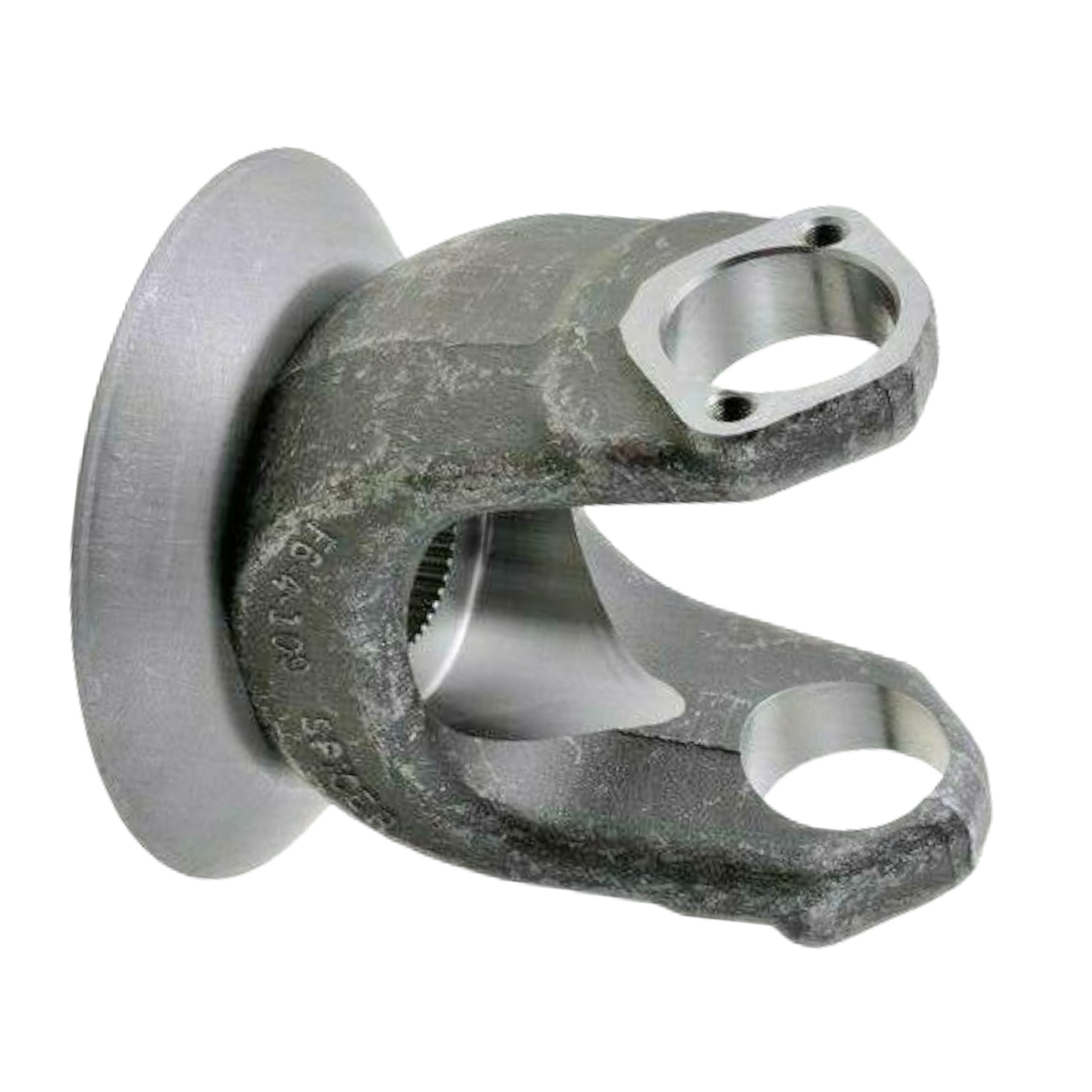

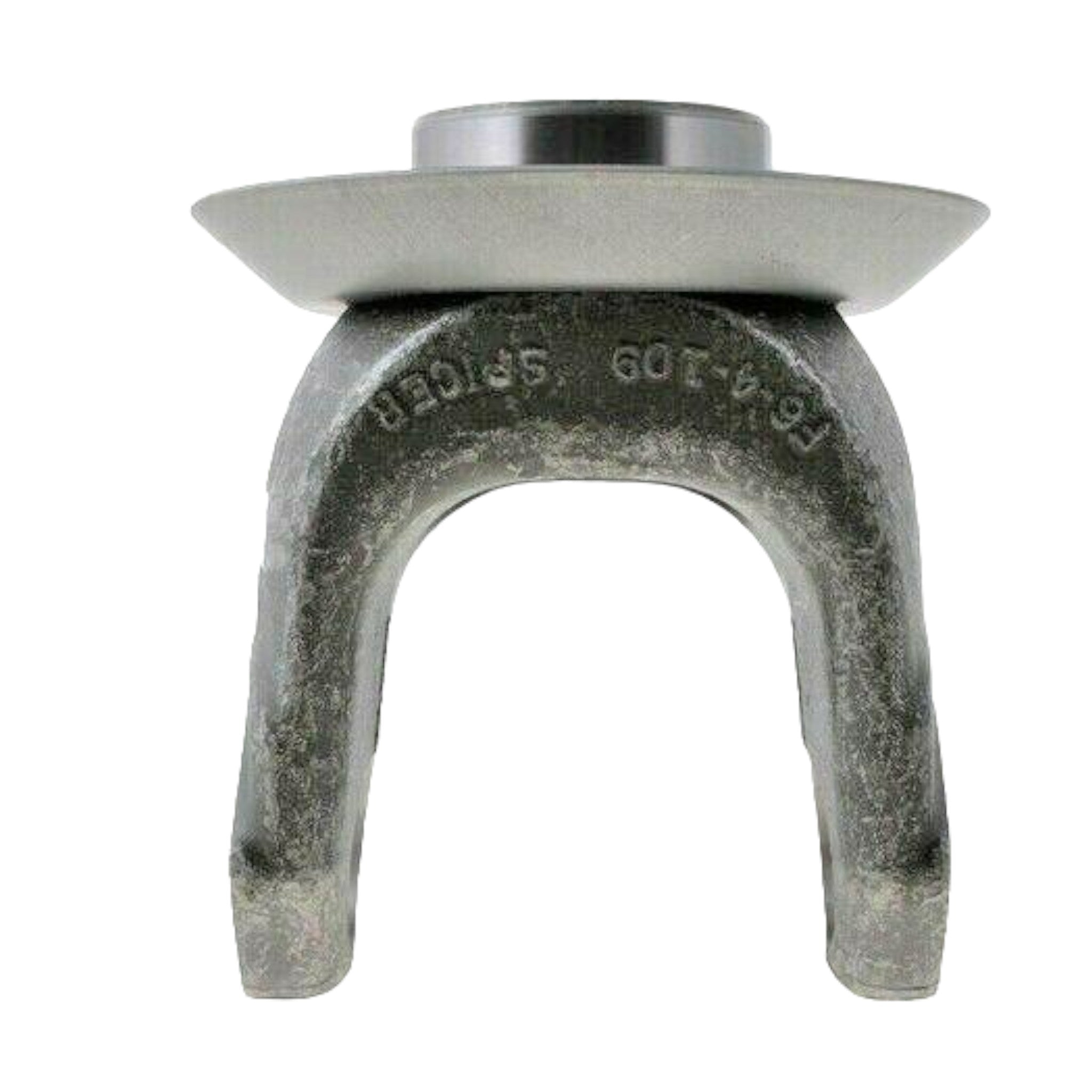

6-4-7771X Dana Spicer Full Round Differential Pinion End Yoke 1710 Series

Call us at: +1 (252) 220-8829
$315.00
Shipping calculated at checkout.

PRODUCT DESCRIPTION

Description: Full Round Differential Pinion End Yoke 1710 Series

Condition: New

Brand: Dana Spicer

Part Number: 6-4-7771x

Other Oem Part Numbers That Will Work: 647771x, Sp647771x, Spi-6-4-7771x, Spi647771x, 701587AT
Brand Spicer
Series 1710
Spline Count 46
Yoke Style Bp
Hub Diameter R 3.250
C/L To End Hub S 6.500
Type Splined Hole
Outside Yoke Dimension (In) E 6.094
Yoke Bearing Dimension (In) D 1.938
Major Diameter 2.390
Involute Spline N
Vmrs 022003072
Length Thru Hole Q 2.344
C-Bore Depth 0.140
Includes Slinger/Plug Y
Assembly Y
Material Steel
Package Type Each
Package Qty 1
Weight 16
Country Of Origin
Mexico
