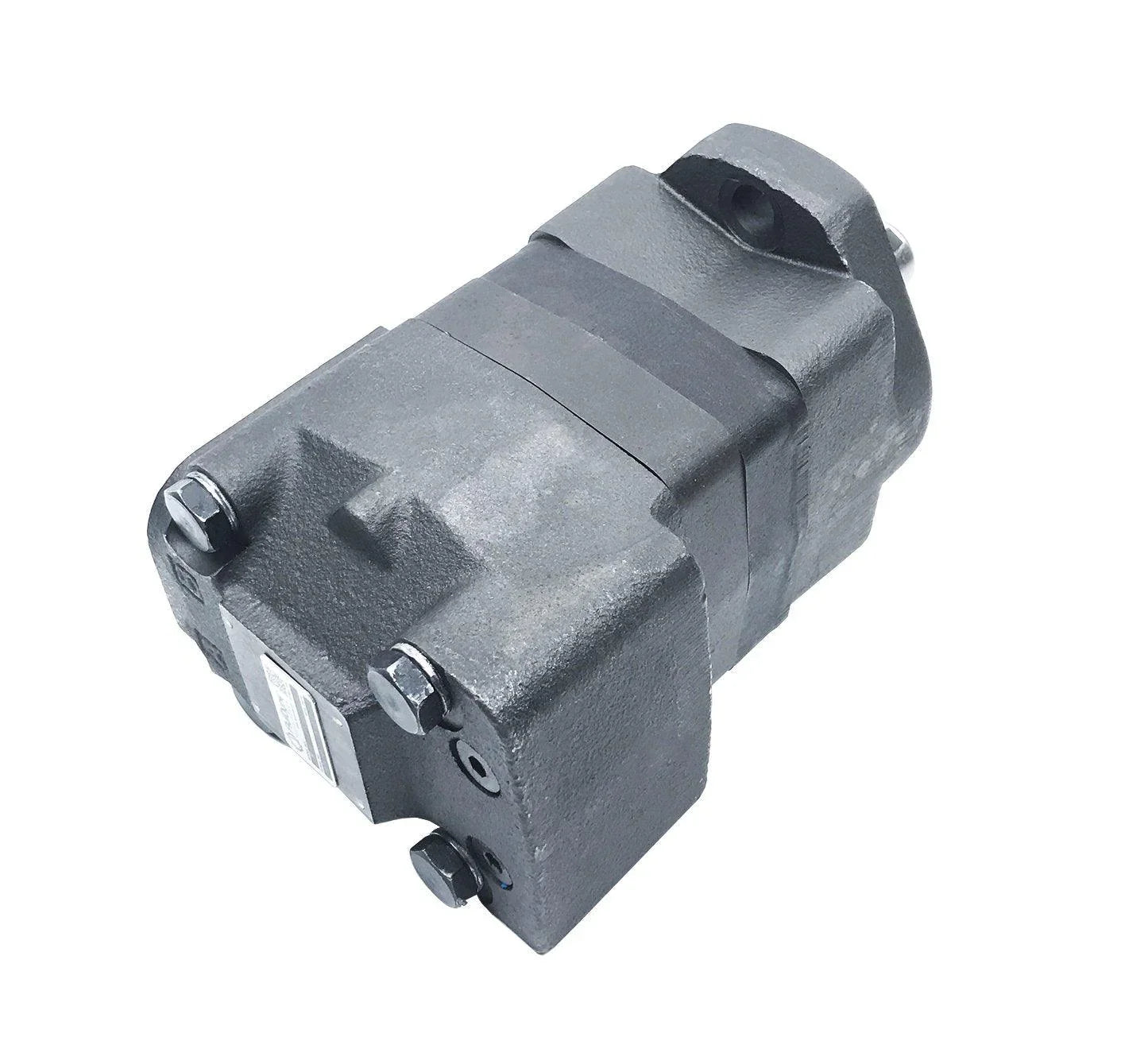

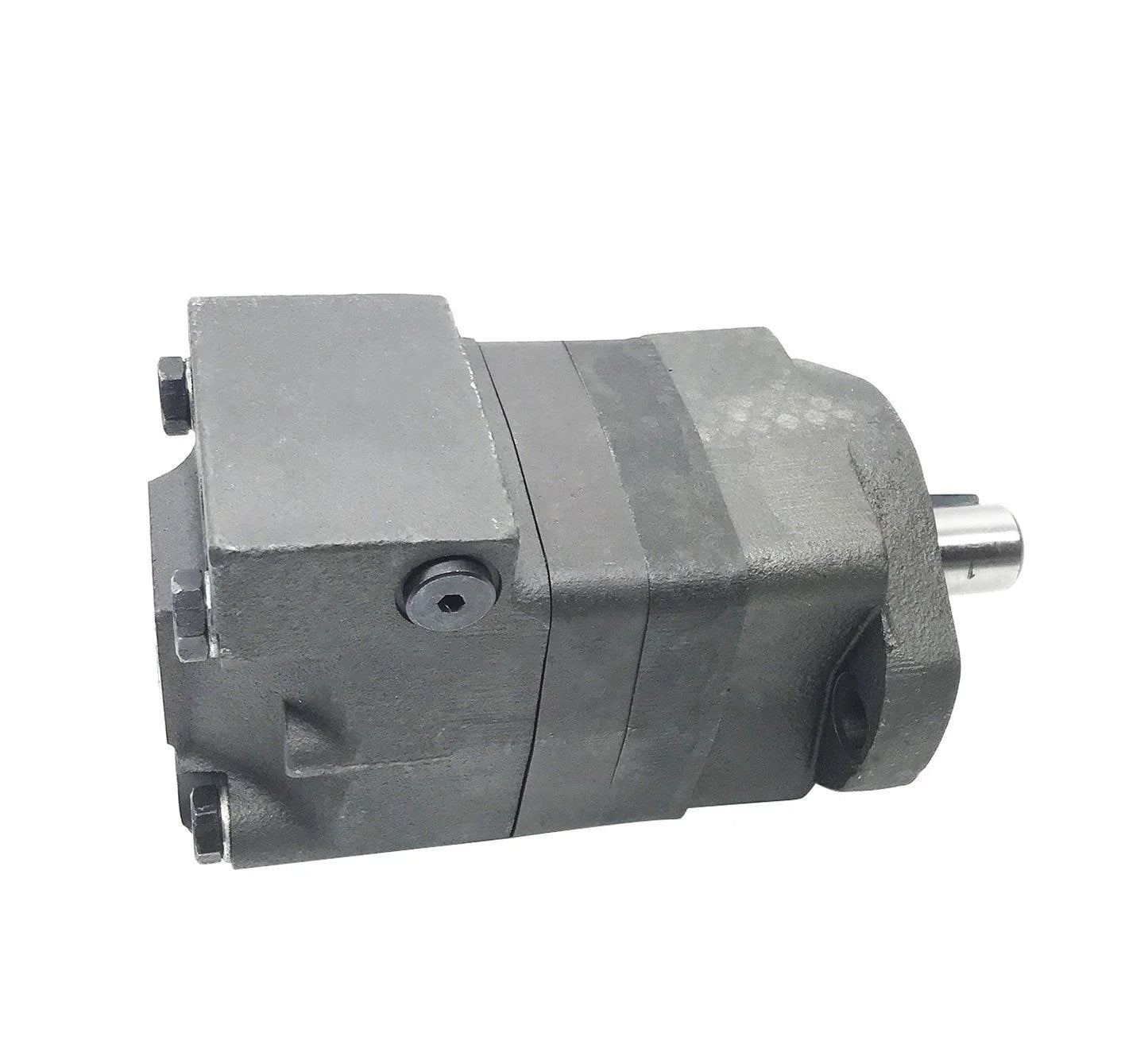

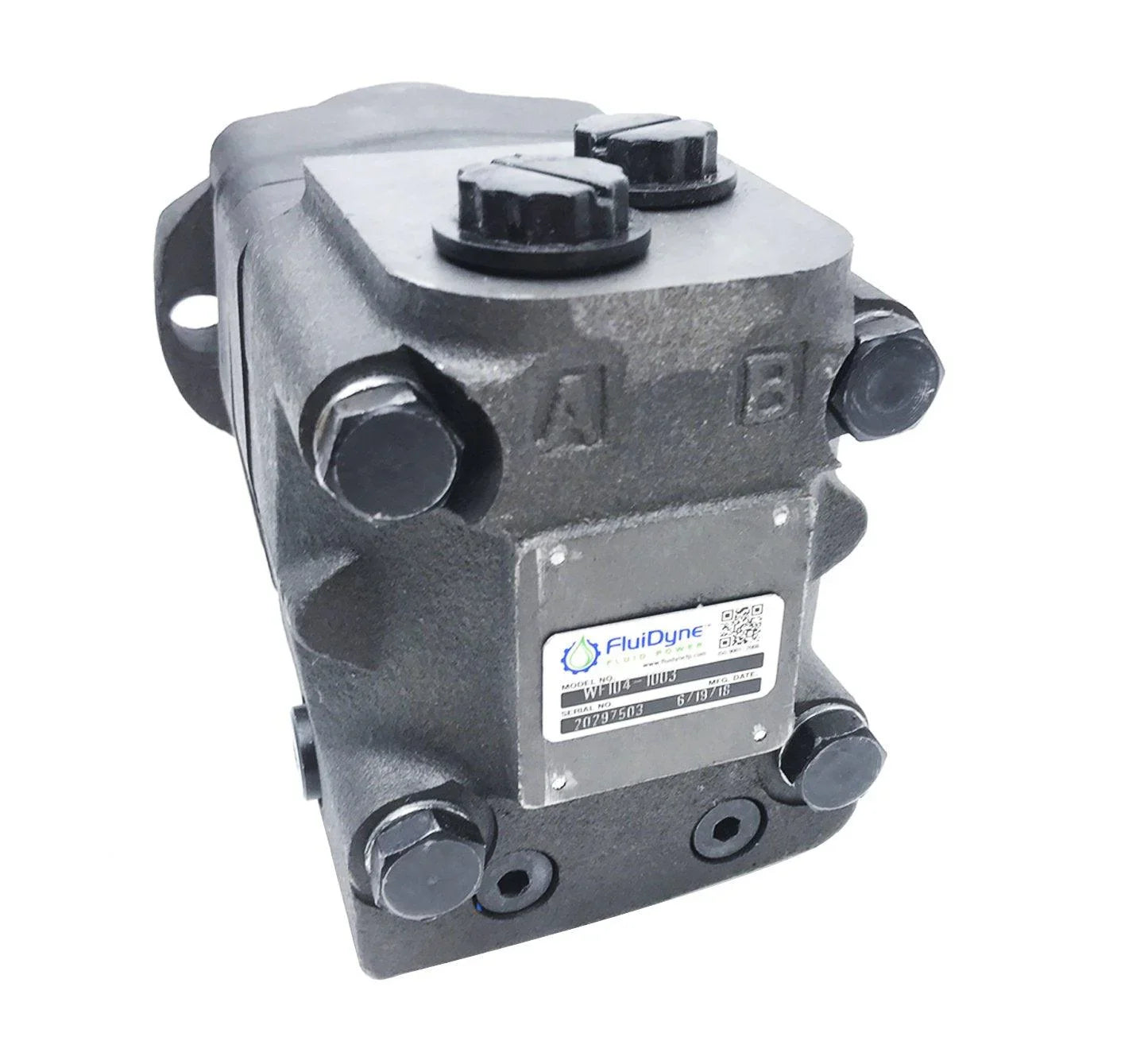

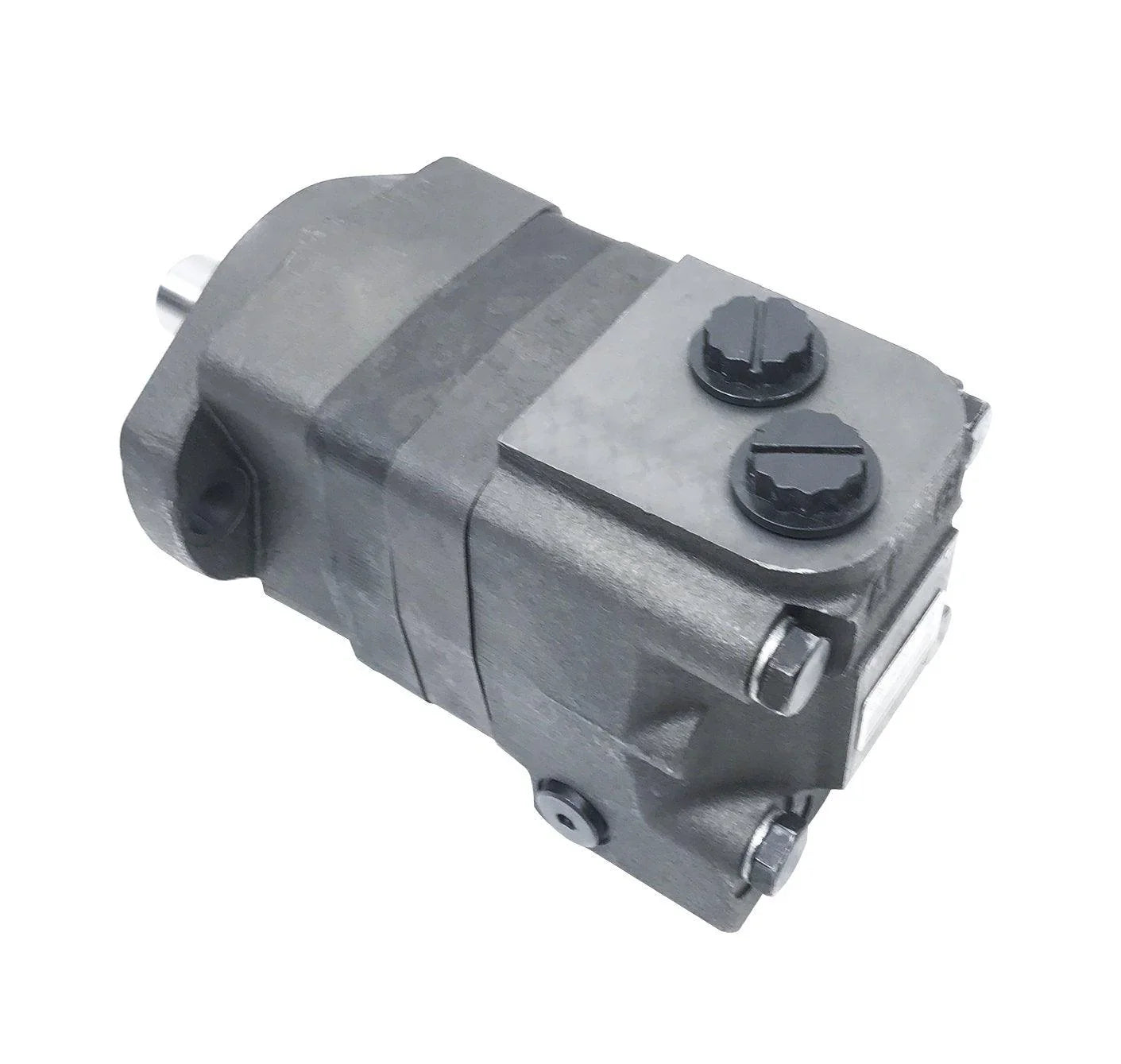

104-1003 | Fluidyne Hydraulic Motor 2000 Series Eaton Charlynn Style Aftermarket

Sold out
Original price $359.00 - Original price $359.00
Original price
$359.00
$359.00 - $359.00
Current price $359.00
Description: Hydraulic Motor 2000 Series Direct Replacement For Eaton Charlynn Style Aftermarket

Condition: New

Brand: Fluidyne

Part Number: 104-1003


Product Specifications

Feature Code Description
Product M Motor
Series 02 2000 Series
Displacement 080 130.6 Cm3/R [ 7.97 In3/R]
Mounting Type Ac Standard, 2 Bolt; 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 106.4 [4.19] Dia. Bolt Circle. Sae A

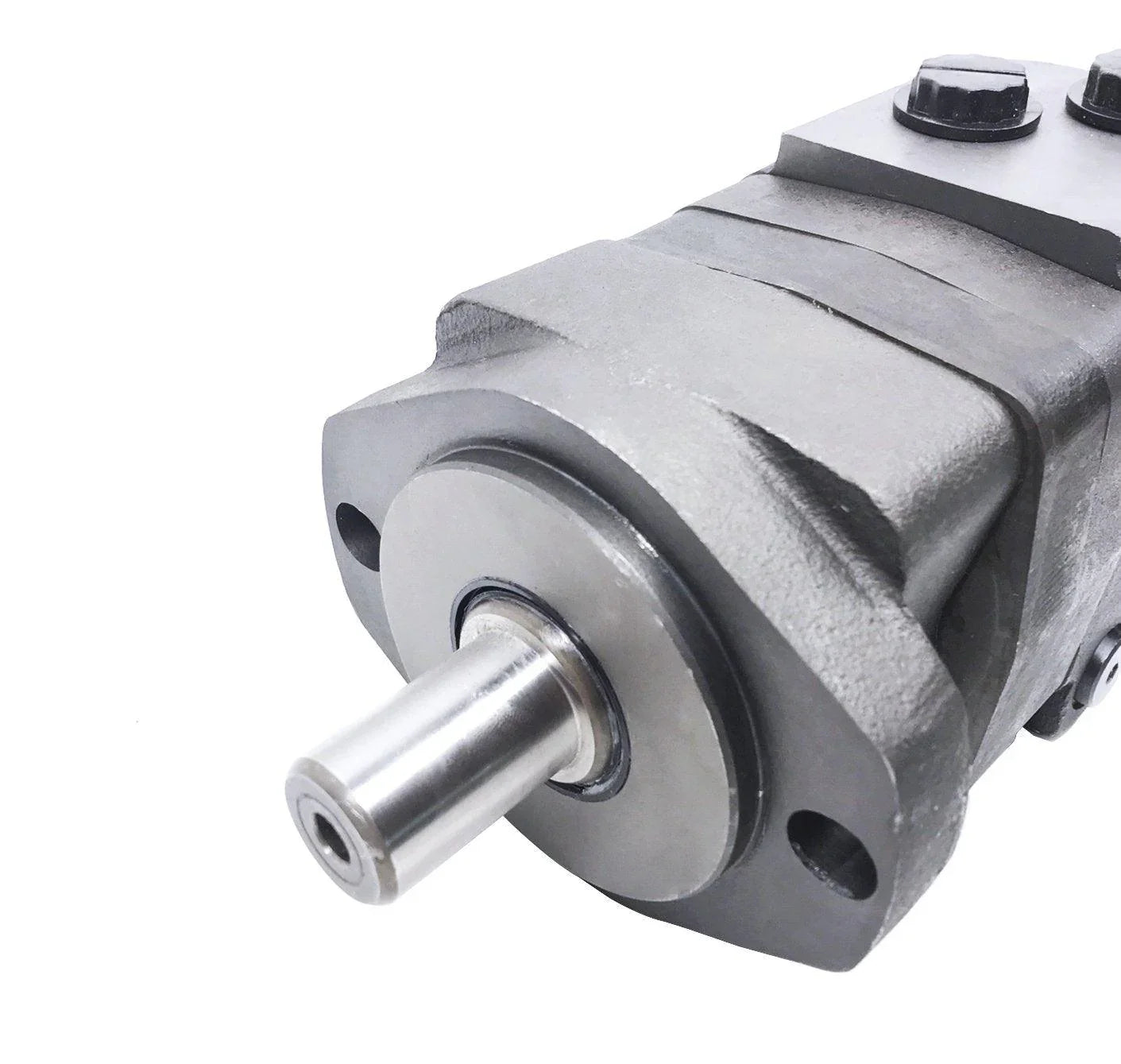

Output Shaft 01 25.40 [1.000] Dia. Straight Shaft With .250-20unc-2b Thread In End, 6.35 [.250] Wide X 25.40 [1.000] Dia. Woodruff Key
Ports Aa .875-14 Unf-2b Sae O-Ring Ports - Staggered Ports
Case Flow Option 01 .4375-20 Unf-2b Sae O-Ring Port
Low Pressure Relief 0 None
Pressure Flow Option 00 None
Geroler Option 1 Standard
Seal Option 0 Standard
Accessories 00 None
Special Features (Hardware) 00 None
Special Features (Assembly) 00 None
Paint/Packaging Aa No Paint, Individual Box
Customer Identification Aa None
Design Code F Sixth

This componet is a vital componet to your equipment.

Warranty:

We offer a 1 year warranty on this part. If this part fails within the 1 year warranty period after you have received your part than we will send you a replacement part or send you a full refund if the part isn't in stock. You can read more about warranty on our website in more detail.

Returns:

We accept returns witin 30 days if you happened to order the wrong part or just no longer need the part. You can read more about our return policy on our website in more detail.
